KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti
Integrated with 12GB GDDR6X 192bit memory interface

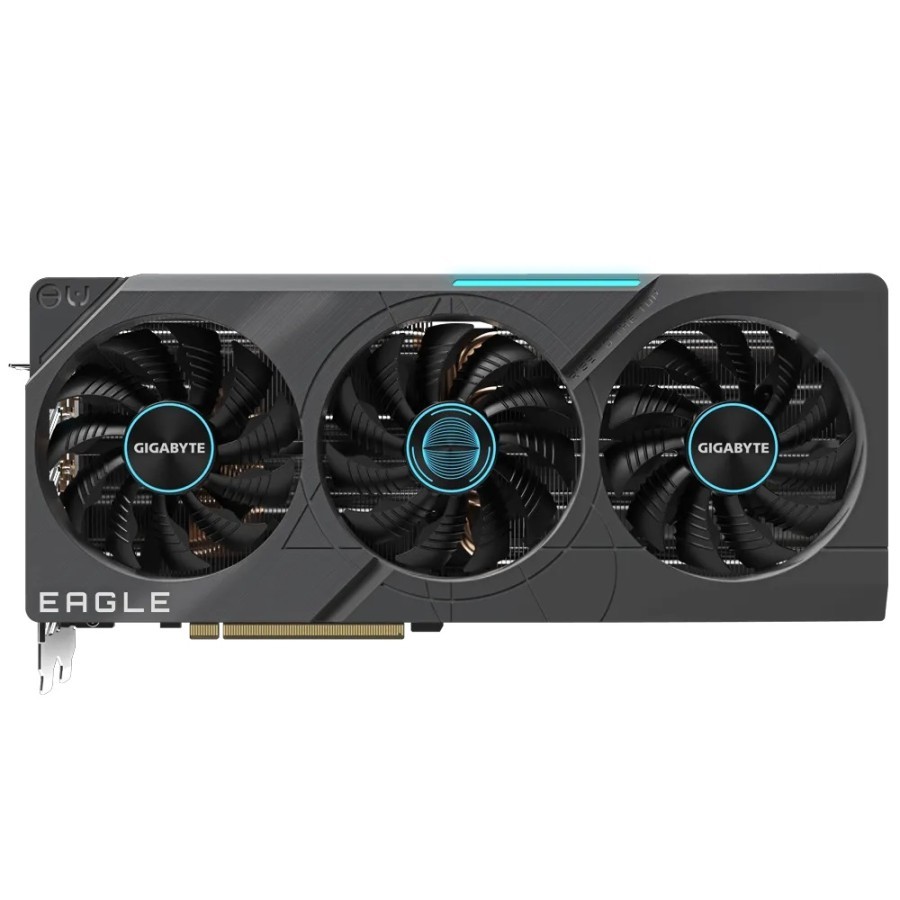

WINDFORCE Cooling System
RGB Fusion
Dual BIOS

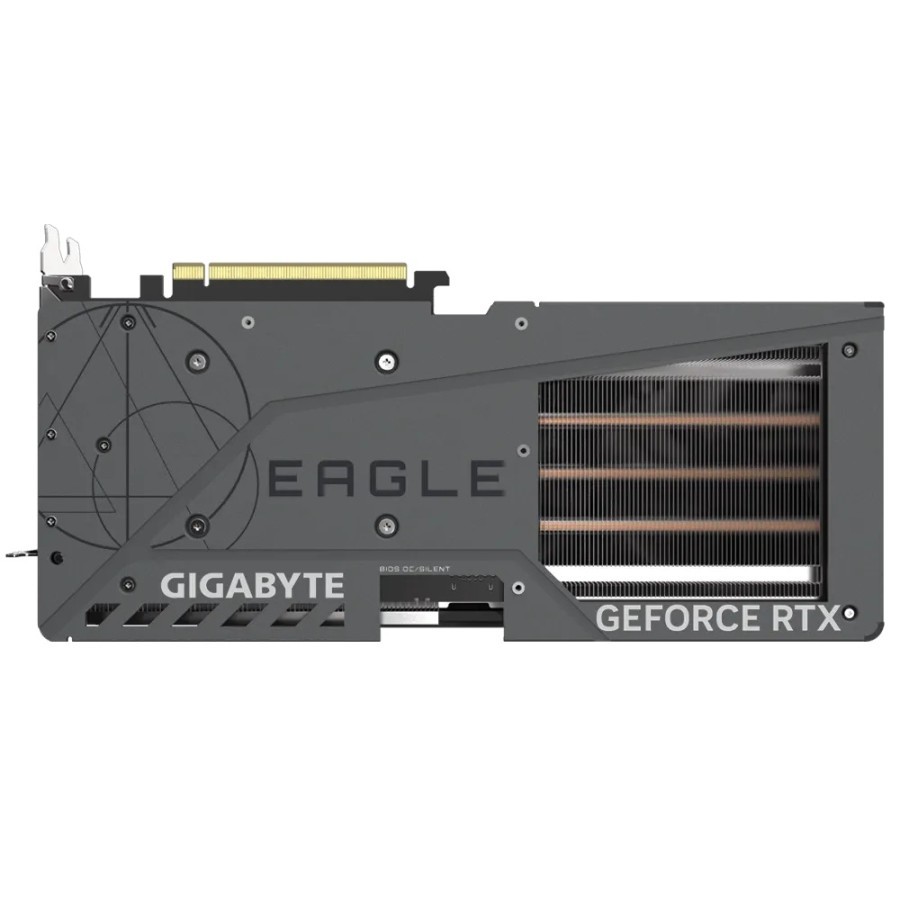

Protection metal back plate
Anti-sag bracket
Graphics Processing GeForce RTX™ 4070 Ti
Core Clock 2625 MHz (Reference card : 2610 MHz)
CUDA® Cores 7680
Memory Clock 21 Gbps
Memory Size 12 GB
Memory Type GDDR6X
Memory Bus 192 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=301 W=136 H=58 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 750W
Power Connectors 16 pin 1
Output DisplayPort 1.43 HDMI 2.1 *1
Accessories
Quick guide
Anti-sag bracket
Anti-sag bracket installation guide
One 16-pin to two 8-pin power adaptor
