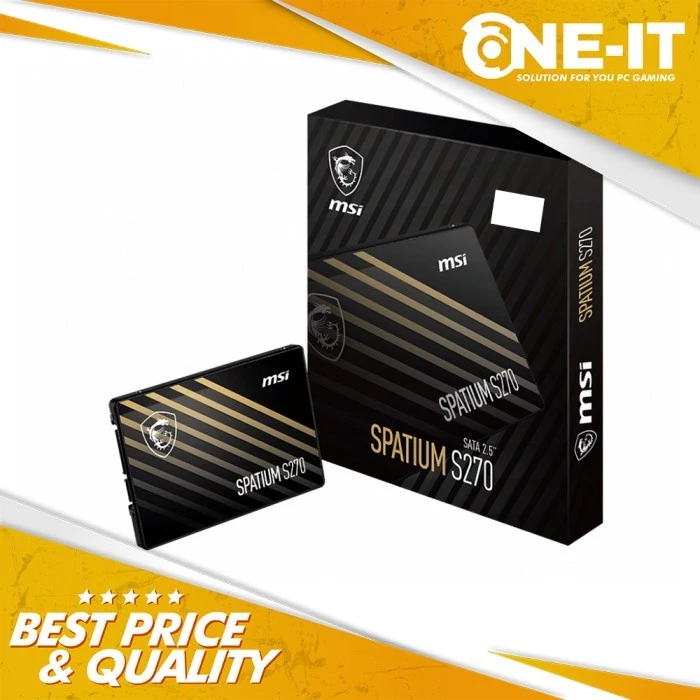

MODEL NAME SPATIUM S270 SATA 2.5 SPATIUM S270 SATA 2.5" SPATIUM S270 SATA 2.5" SPATIUM S270 SATA 2.5"
CAPACITY 120GB 240GB 480GB 960GB
CONTROLLER PHISON 11 PHISON S11 PHISON S11 PHISON S11
FLASH MEMORY 3D NAND
FORM FACTOR SATA 2.5"
INTERFACE SATA III 6Gbps
COMPATIBILITY SATA III (6Gbps) / II (3Gbps) / I (1.5Gbps)
DIMENSIONS 100.20mm (L) x 69.85mm (W) x 7.00mm (H)
SEQUENTIAL READ UP TO (MB/S) 500
SEQUENTIAL WRITE UP TO (MB/S) 360 400 450 450
RANDOM READ 4KB UP TO (IOPS) 38,000 50,000 55,000 55,000
RANDOM WRITE 4KB UP TO (IOPS) 72,000 80,000 80,000 80,000
MAXIMUM OPERATING POWER (W) 1.8 1.7 2.0 2.1
IDLE POWER PS3 (MW) 325 325 335 330
LOW POWER L1.2 (MW) 4.9
OPERATING TEMPERATURES 0°C – 70°C
STORAGE TEMPERATURES -40°C – 85°C
TERABYTES WRITTEN (TBW) 40 110 250 500
MEAN TIME BETWEEN FAILURE (MTBF) Up to 2,000,000 Hours
LIMITED WARRANTY 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
ADVANCED FEATURES TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
Over-Provision
