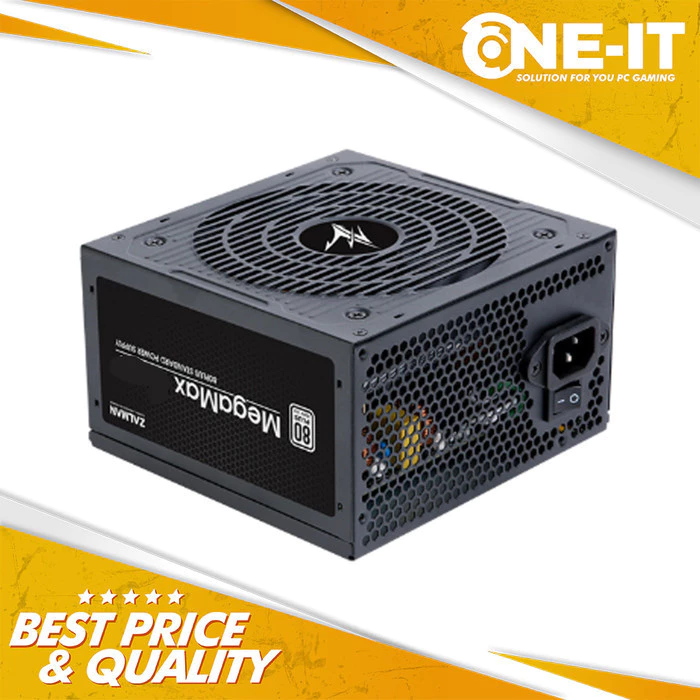

Model MegaMax [700W] ZM700-TXII
80PLUS STANDARD Power Supply
Efficiency Max 87% @220VAC, Typical Load
Dimensions 140(L) x 150 (W) x 86 (H) mm
MTBF 100,000Hours
Weight 1.79 kg
Operating Temperature 10~45℃
PFC Active PFC 99%
Regulatory KC, CE, CB, RoHS, EAC
Type Intel ATX 12V Ver 2.31
Protection OPP/ OVP/ UVP/ SCP
Input Voltage 200-240VAC
Input Current 6A
Input Frequency 50-60Hz
Fan Size 120mm
Rated Speed 2,500 RPM
Fan Bearing Hydro- Dynamic Bearing
Cables (Connector) Mainboard Cable
CPU Cable ( Connector 2EA)
PCI Express Cable 2EA (Connector 2EA)
S-ATA Cable 2EA ( Connector 3EA)
Peripheral FDD +
Peripheral IDE (Connector 2EA)
Peripheral IDE Cable (Connector 2EA)
