ATX 3.1 support

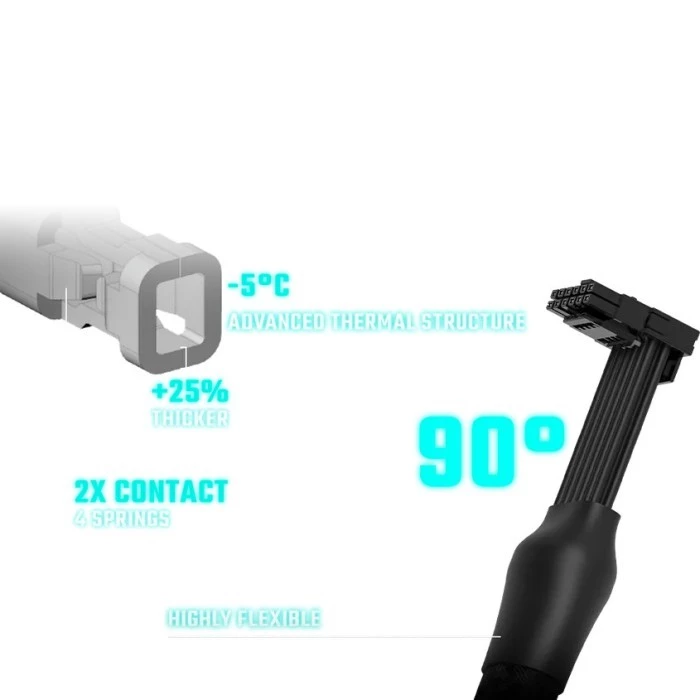

A 90-degree 12V-2×6 adapter cable
High temperature resilience

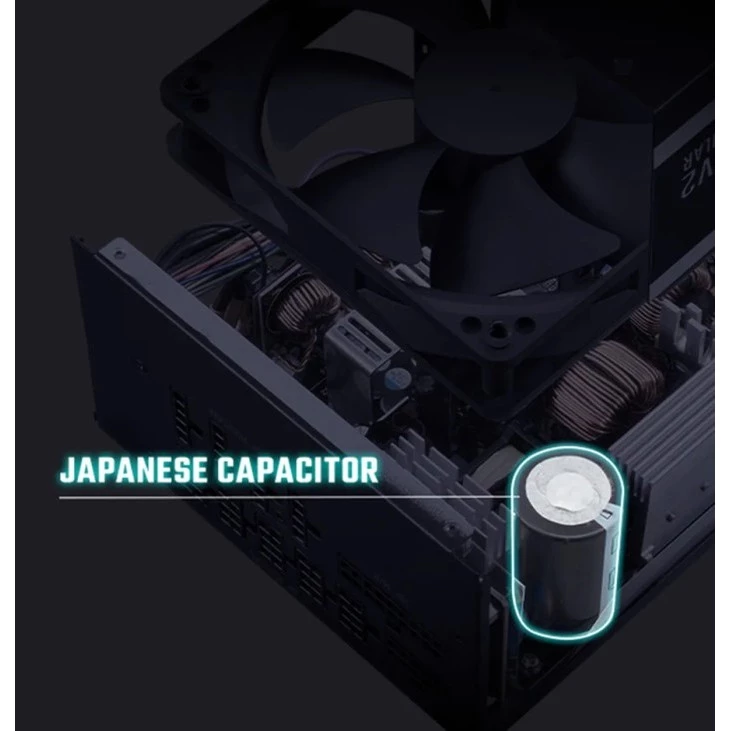

High-quality Japanese capacitors
Fully modular cabling
5-year warranty

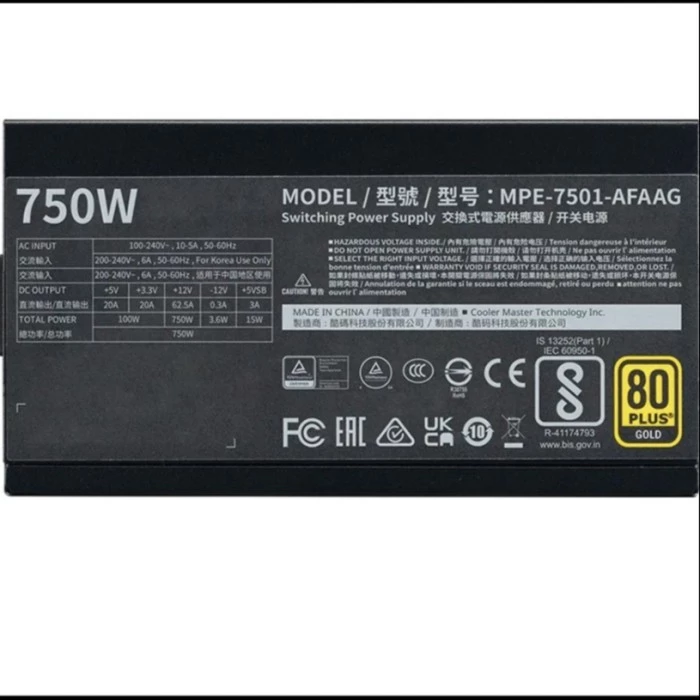

Model : MPE-7501-AFAAG-3E**
ATX Version : ATX 12V Ver. 3.1
PFC : Active PFC
Input Voltage : 100-240V
Input Current : 10-5A
Input Frequency : 50-60Hz
Dimensions (L x W x H) : 160 x 150 x 86 mm
Fan Size : 120mm
Fan Bearing : HDB

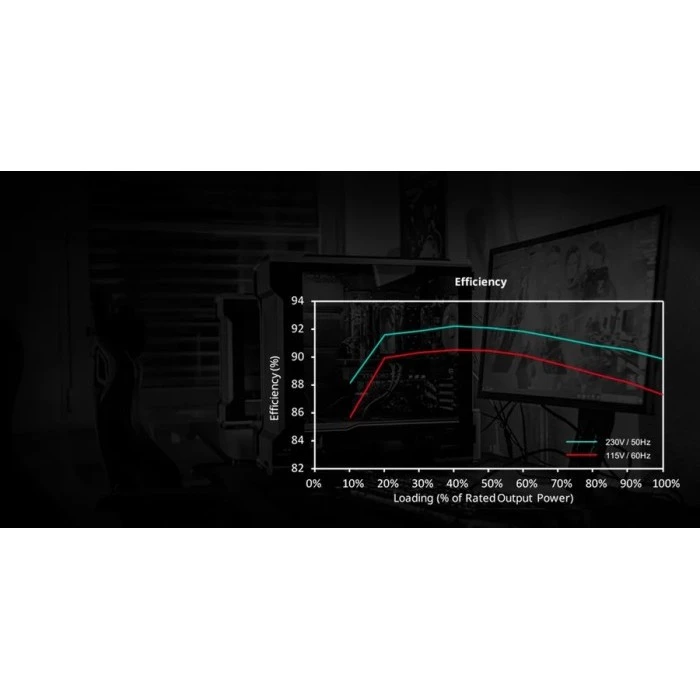

Efficiency : ≥90% @ Typical Load
80 PLUS Rating : 80 PLUS Gold
ErP 2014 Lot 3 : Yes
Operating Temperature : 0-50°C
Power Good Signal : 100 – 150 ms
Hold Up Time : ≥ 16ms
MTBF : >100,000 Hours
Protections : UVP / OVP / OPP / OTP / SCP / OCP
Regulatory : TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

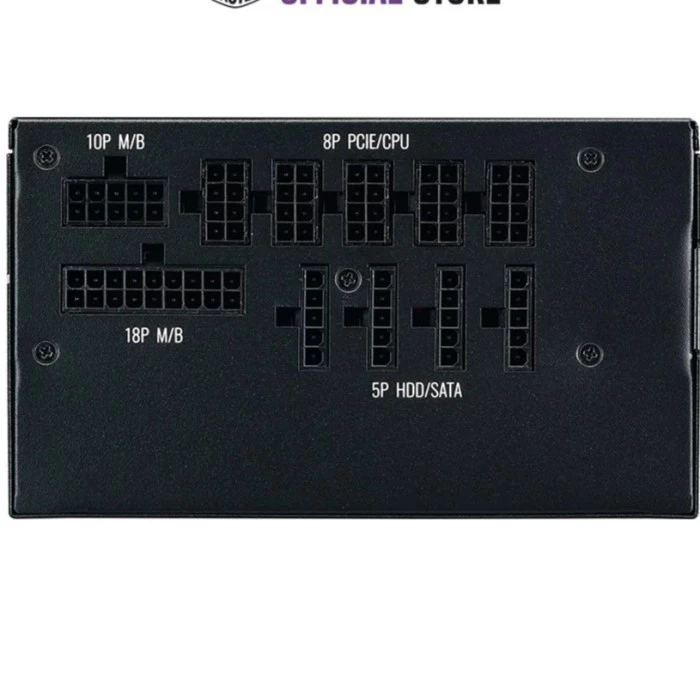

ATX 24 Pin Connectors : 1
EPS 4+4 Pin Connectors : 1
EPS 8 Pin Connector : 1
SATA Connectors : 12
Peripheral 4 Pin Connectors : 4
PCI-e 6+2 Pin Connectors : 4
12V-2×6 Connectors : 1 (1 to 3)
Category : Above 750W
Series : MWE Gold Series
Modular : Fully Modular
Form Factor : ATX
80 Plus Efficiency : Gold
Watts : 750W
