KEY FEATURE
NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS

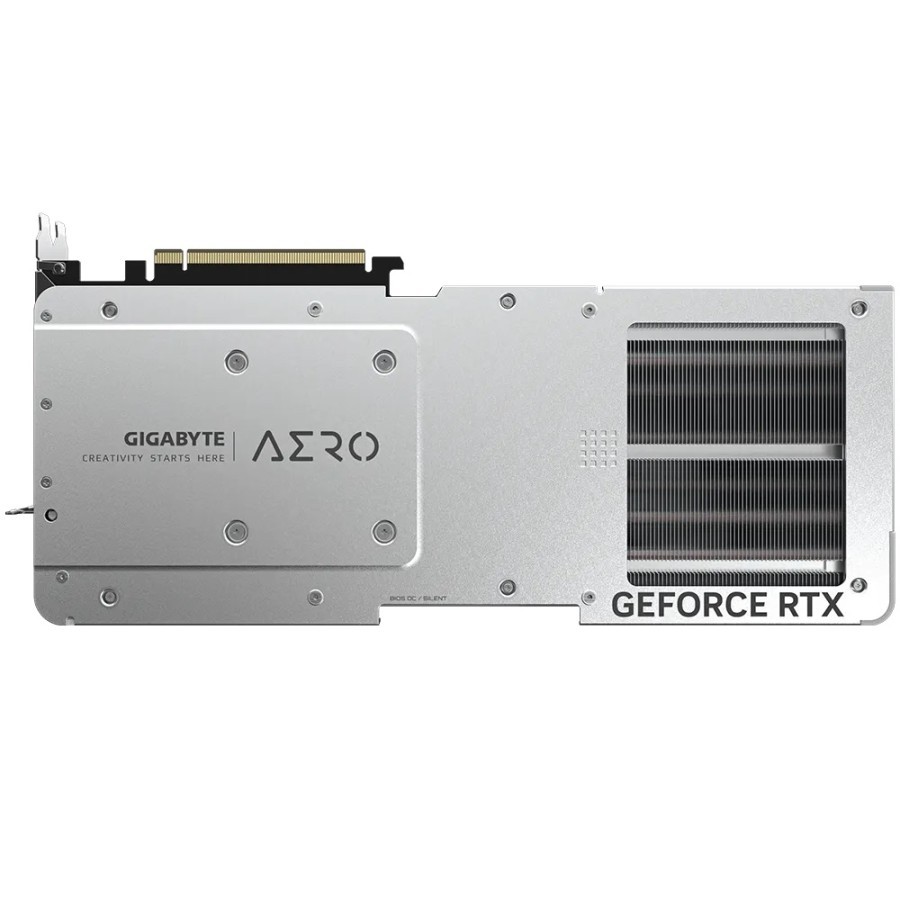

Protection metal back plate
Anti-sag bracket

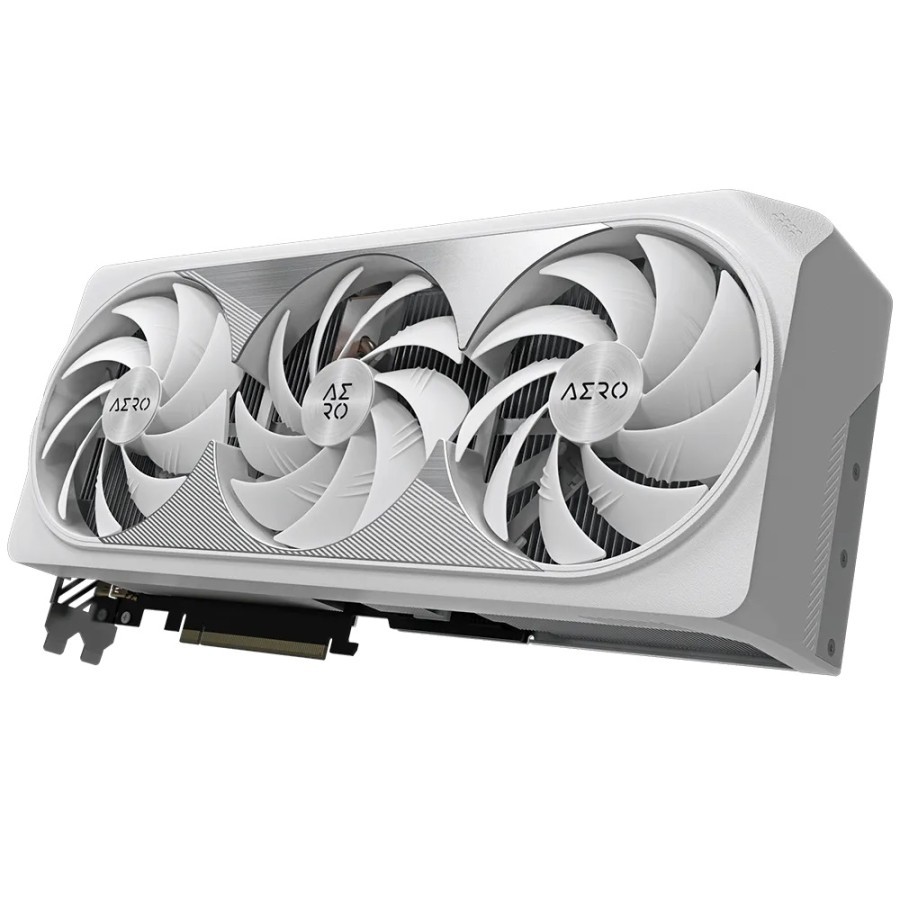

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
Graphics Processing GeForce RTX 4090
Core Clock 2535 MHz (Reference Card: 2520 MHz)
CUDA Cores 16384
Memory Clock 21 Gbps
Memory Size 24 GB
Memory Type GDDR6X
Memory Bus 384 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=342 W=150 H=75 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 1000W
Power Connectors 16 pin1

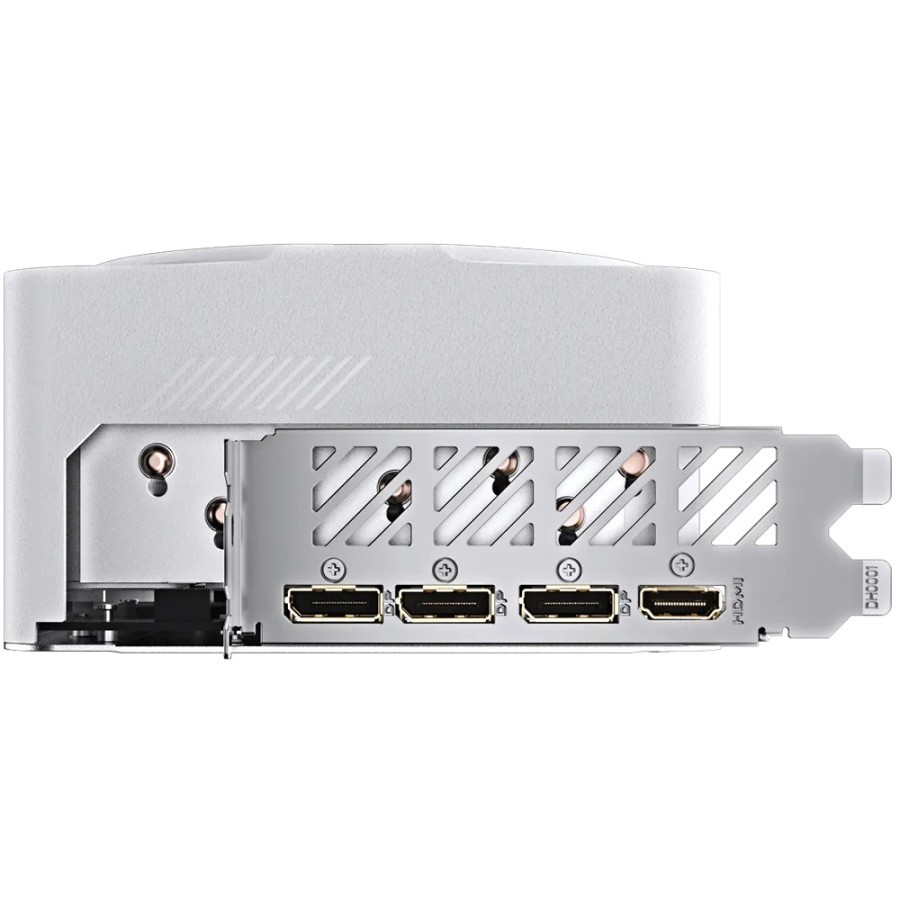

Output DisplayPort 1.4a3, HDMI 2.1a *1
Accessories
Quick guide
Warranty registration
Anti-sag bracket
Anti-sag bracket installation guide
One 16-pin to four 8-pin power adaptor
