KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4080 SUPER
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket
Graphics Processing GeForce RTX™ 4080 SUPER
Core Clock 2595 MHz (Reference card: 2550 MHz)
CUDA® Cores 10240
Memory Clock 23 Gbps
Memory Size 16 GB
Memory Type GDDR6X
Memory Bus 256 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=342 W=150 H=75 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 850W
Power Connectors 16 Pin1

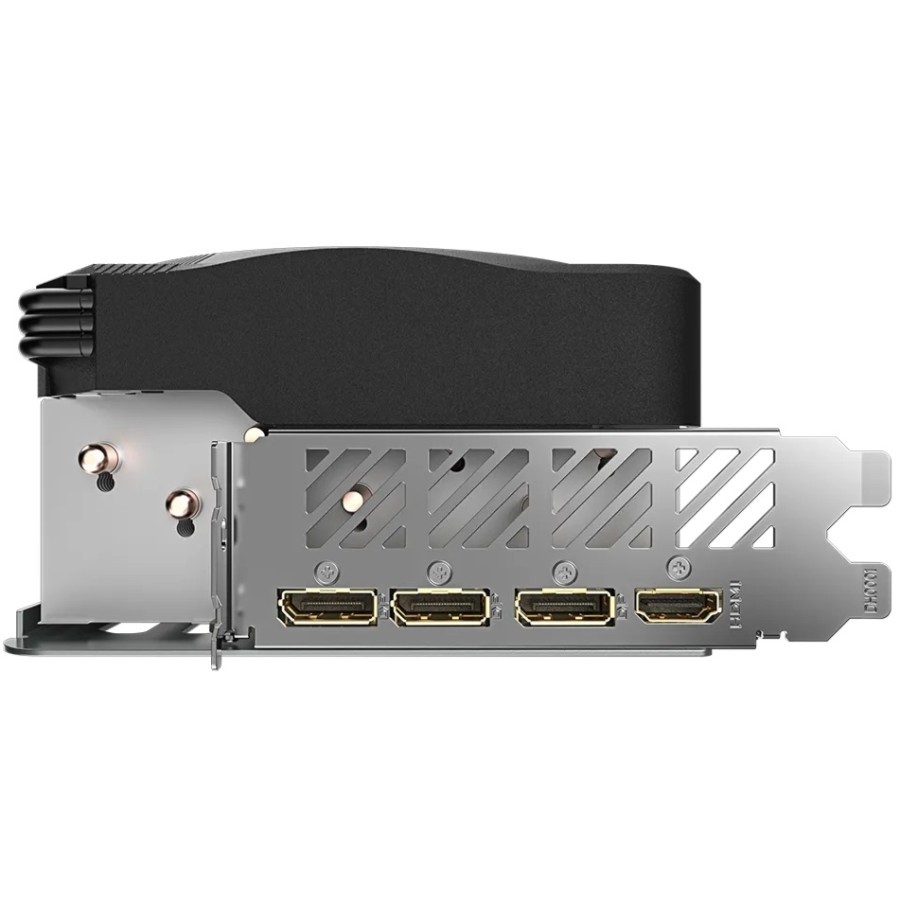

Output
DisplayPort 1.4a3
HDMI 2.1a *1
Accessories
Quick guide
Warranty registration
Anti-sag bracket
Anti-sag bracket installation guide
One 16 pin to triple 8-pin power adaptor
