KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti SUPER
Integrated with 16GB GDDR6X 256bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS

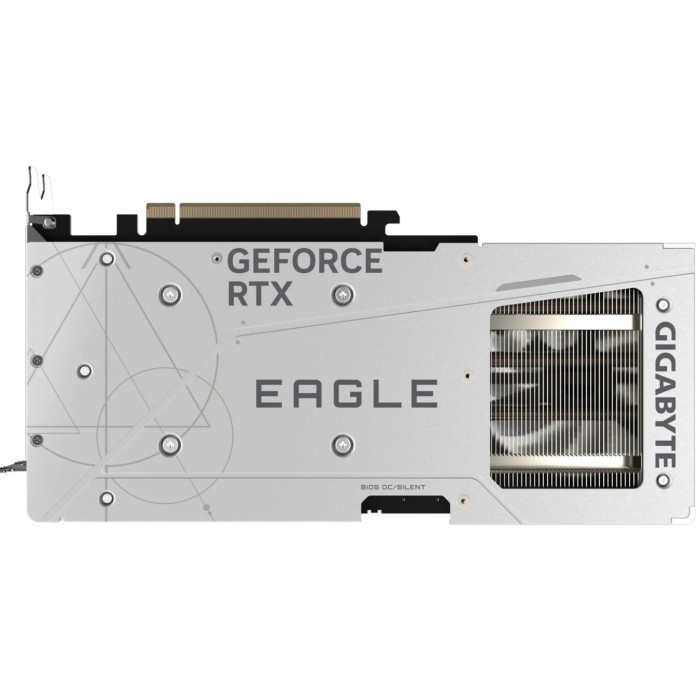

Protection metal back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Graphics Processing GeForce RTX™ 4070 Ti SUPER
Core Clock 2640 MHz (Reference card: 2610 MHz)
CUDA® Cores 8448
Memory Clock 21 Gbps
Memory Size 16 GB
Memory Type GDDR6X
Memory Bus 256 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=261 W=126 H=50 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 750W
Power Connectors 16 Pin1

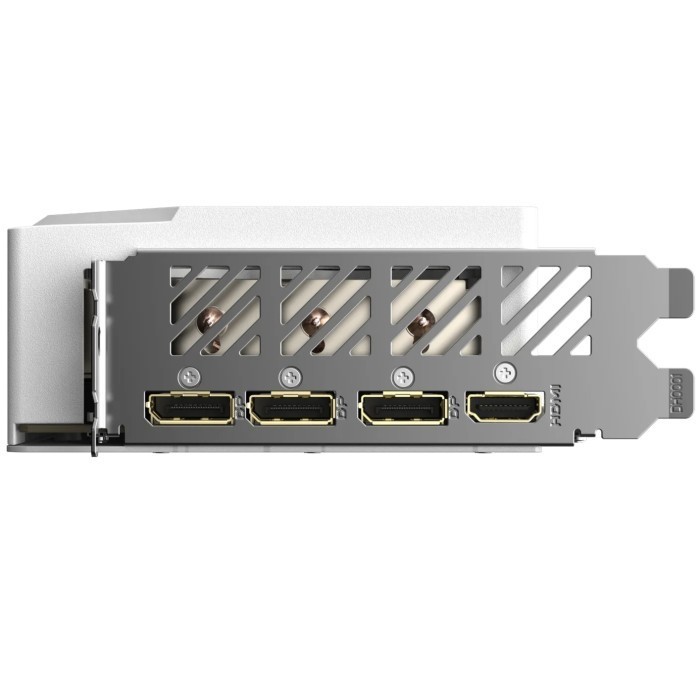

Output DisplayPort 1.4a3, HDMI 2.1a *1
Accessories 1. Quick guide 2. One 16 pin two 8-pin power adaptor
