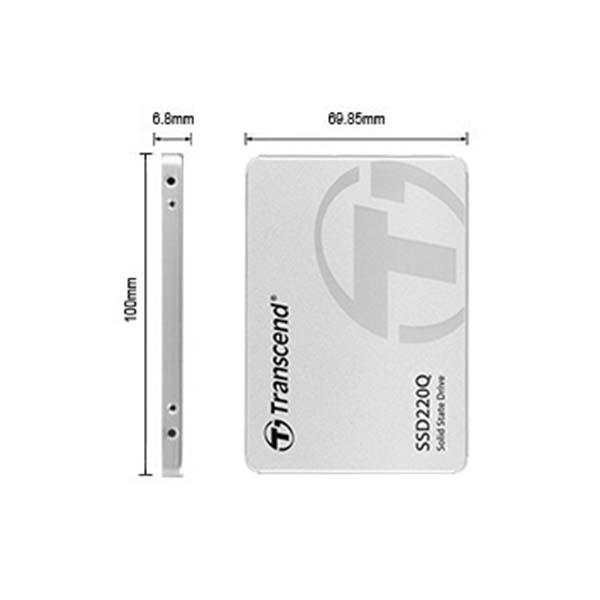

Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94″ x 2.75″ x 0.28″)
Weight 45 g (1.59 oz)
Flash Type QLC NAND flash
Capacity 500 GB/1 TB/2 TB
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage 5V±5%
Sequential Read/Write (CrystalDiskMark)
2 TBup to 550/500 MB/s 1 TBup to 550/500 MB/s 500 GBup to 550/500 MB/s
4K Random Read/Write (IOmeter)
2 TBup to 81,000/80,000 IOPS 1 TBup to 57,000/79,000 IOPS 500 GBup to 57,000/59,000 IOPS
Terabytes Written (TBW)
2 TB400 TBW 1 TB200 TBW 500 GB100 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.19 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
For Mac users please visit our Apple Solutions here.
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Technology
TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding
