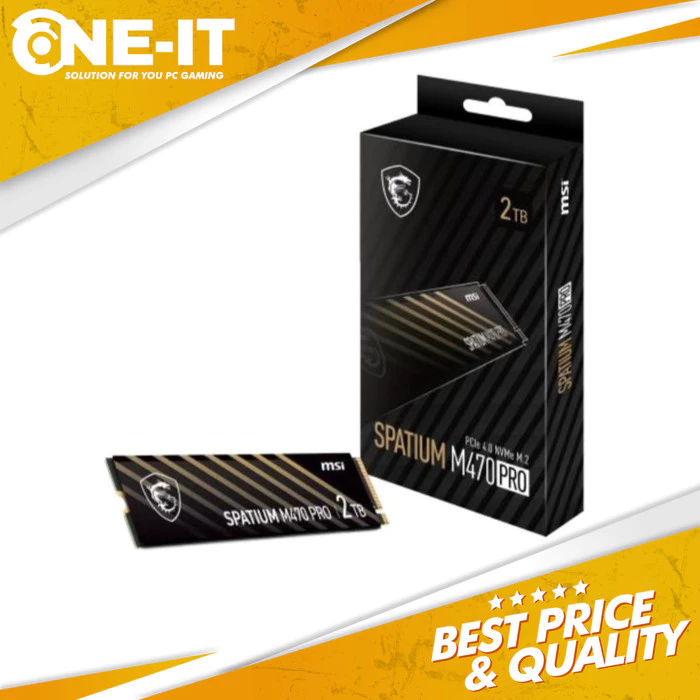

SPATIUM M470 PRO PCIe 4.0 NVMe M.2
PCIe Gen4x4 interface and complies with the NVMe 1.3 standard
Sequential Read speeds up to 6000MB/s and Write speeds up to 5000MB/s
Up to 640 TBW
Built-in data security and error-correction capabilities
500GB to 2TB capacities in M.2 2280 form factor
Suitable for both desktop and notebook
5-Year Warranty
Model Name SPATIUM M470 PRO PCIe 4.0 NVMe M.2
Controller PHISON E27T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 6000
Sequential Write up to (MB/s) 5000
Random Read 4KB up to (IOPS) 950,000
Random Write 4KB up to (IOPS) 950,000
Maximum Operating Power (W) 4.5
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 640
Mean Time Between Failure (MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
