Features
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Details

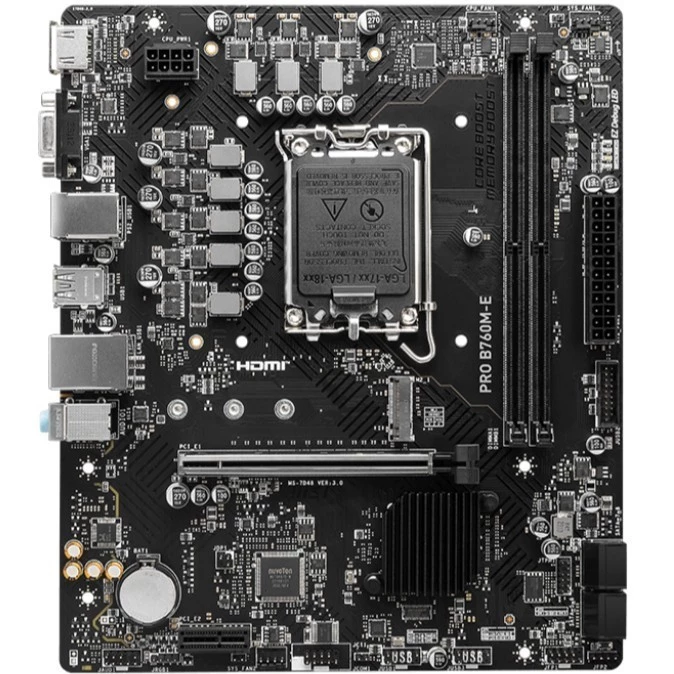

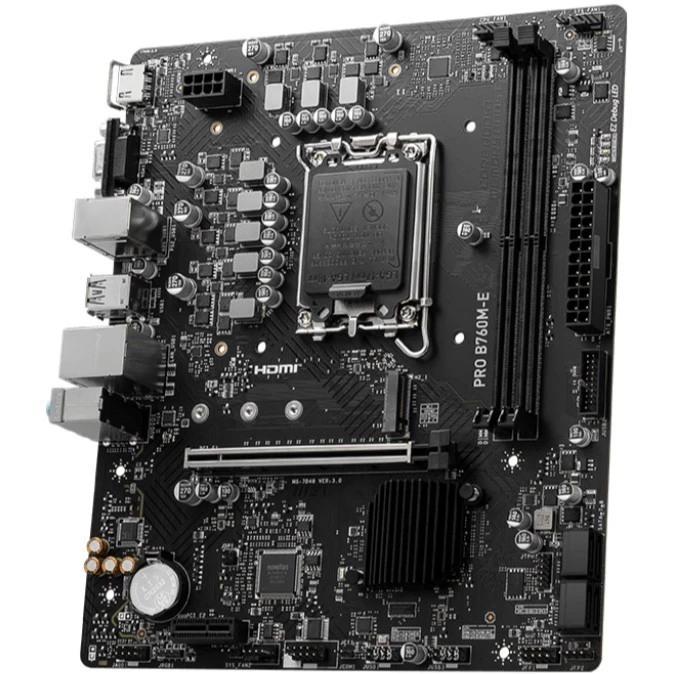

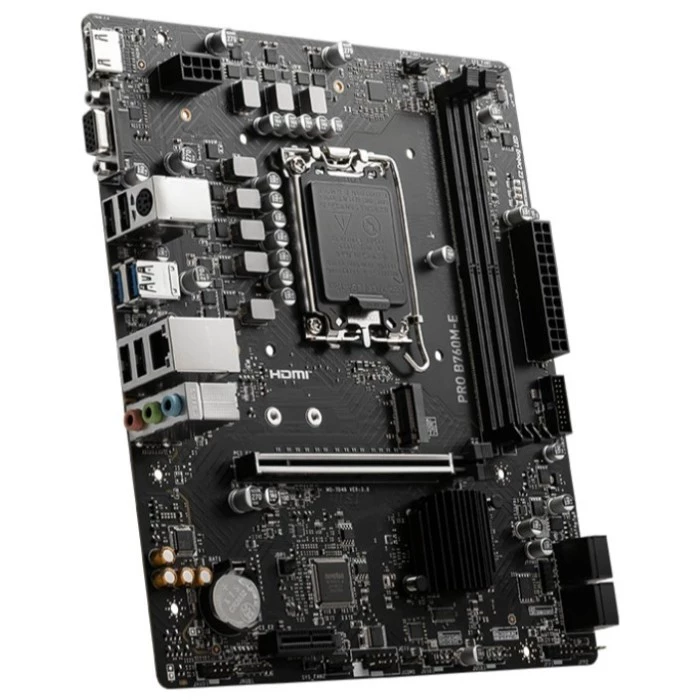

Chipset : Intel B760
CPU : Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
Slot
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

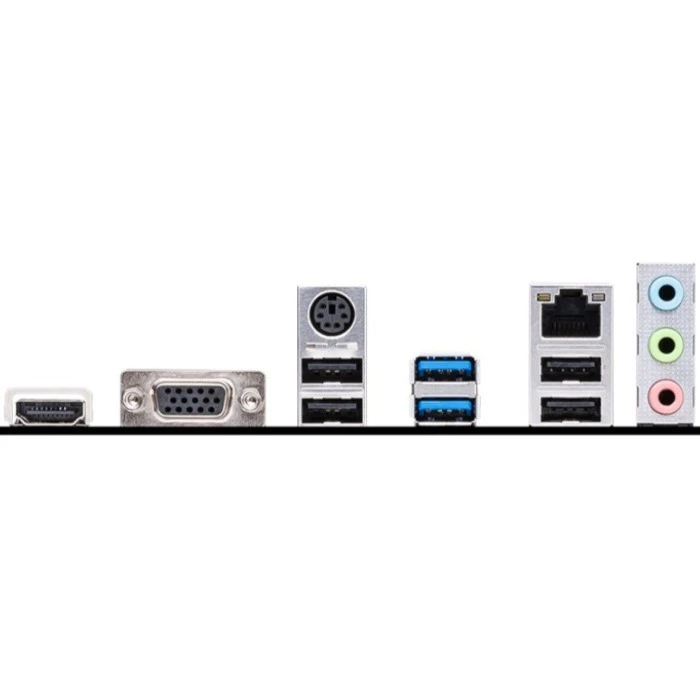

USB
4x USB 2.0 (Rear)
4x USB 2.0
