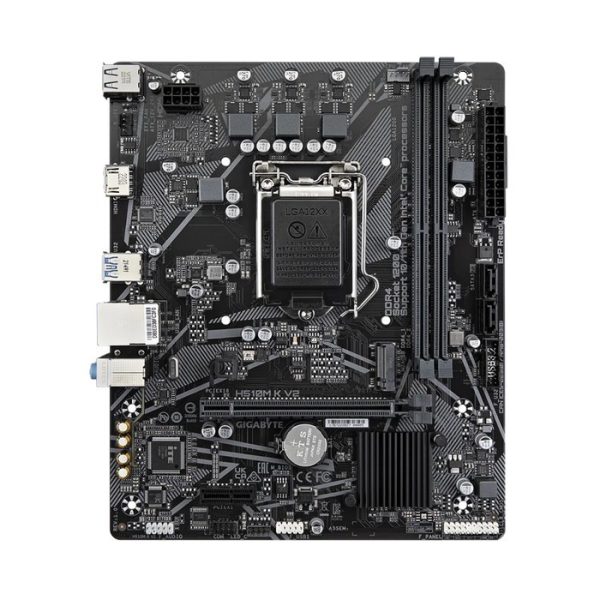

H510M K V2 (rev. 2.0)
Prosesor LGA1200 package:
10th-11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
Chipset : Intel® Q470 Express Chipset
Memory:
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Audio :
Realtek® Audio CODEC
High Definition Audio
LAN : Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Storage :
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
Operation System :
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor : Micro ATX Form Factor; 22.6cm x 18.5cm
