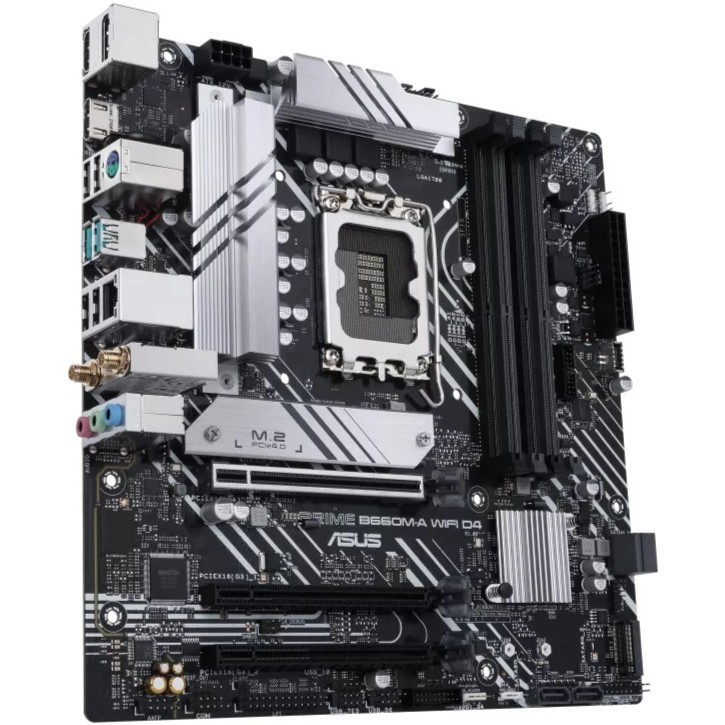

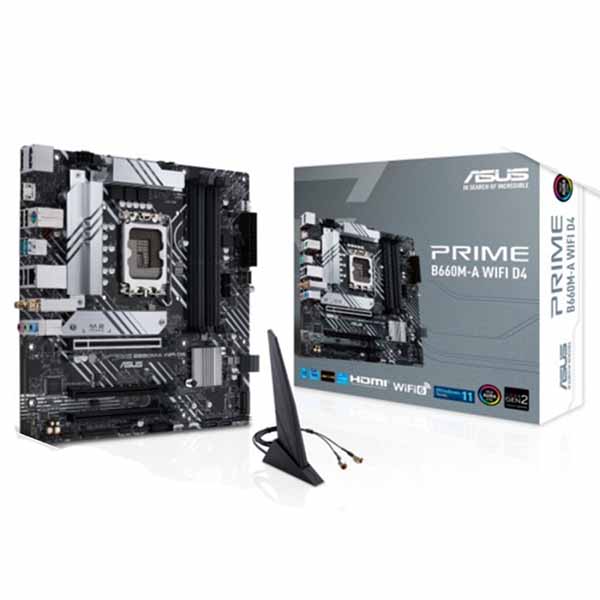

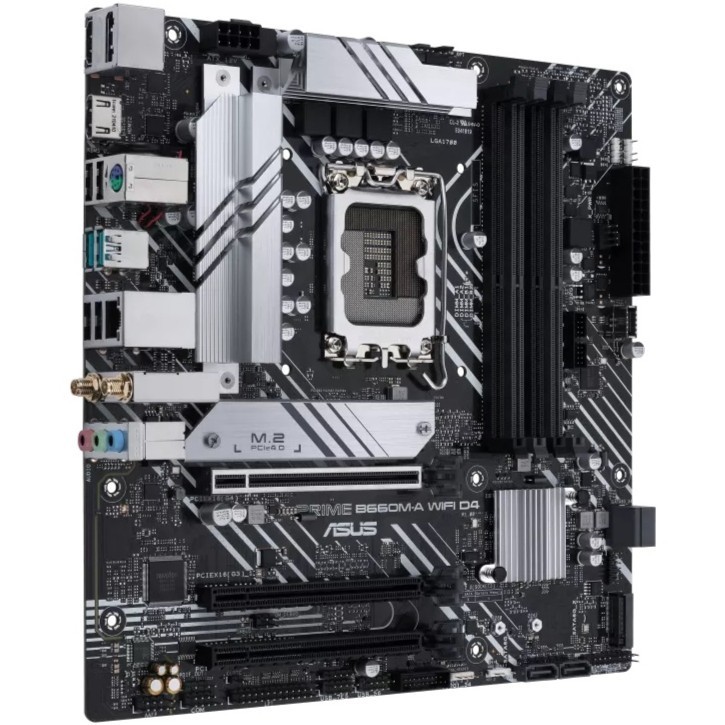

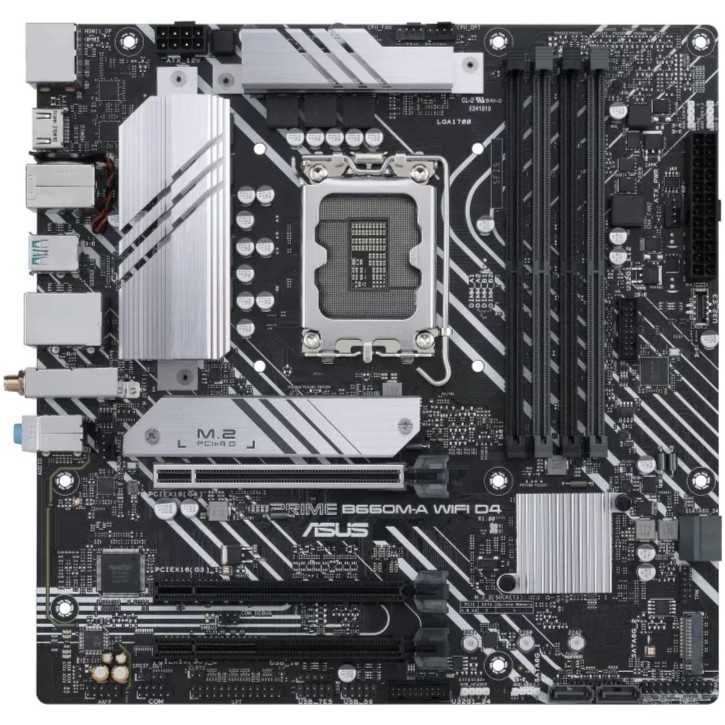

Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Ultrafast connectivity : Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B660 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
