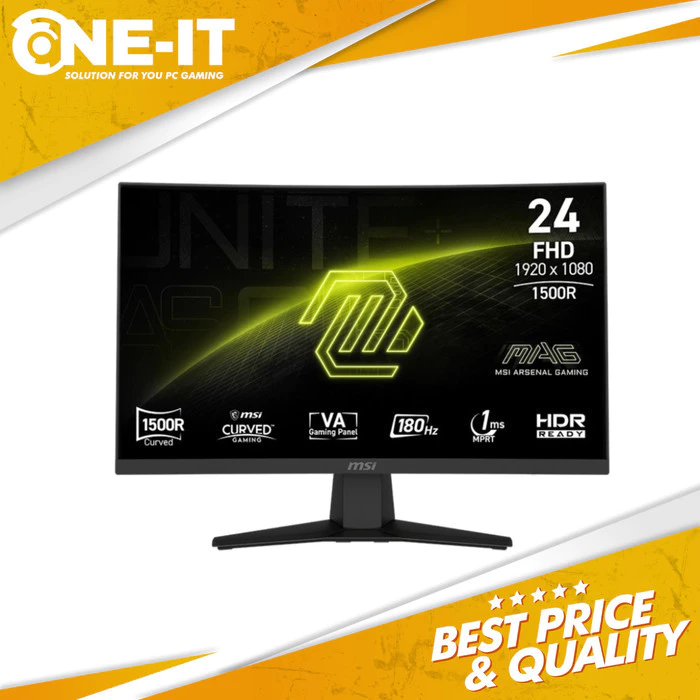

Panel Size 23.6″
Active Display Area (mm) 521.3952(H)x293.2848(V)
Curvature Curve 1500R
Panel Type VA
Panel Resolution 1920 x 1080 (FHD)
Pixel Pitch (H x V) 0.27156(H)x0.27156(V)
Aspect Ratio 16:9
Brightness (nits) SDR: 250 cd/m2
Contrast Ratio 3000:1
DCR 100000000:1
Signal Frequency 55.3~200 KHz(H) / 48~180 Hz(V)
ACTIVATED RANGE 48~180Hz
Refresh Rate 180Hz
Response time 1ms(MPRT)
DYNAMIC REFRESH RATE TECHNOLOGY Adaptive-Sync
HDR Support HDR Ready
Video ports 1x HDMI 2.0b (FHD@180Hz)
1x DisplayPort 1.2a (HBR2)
Audio ports 1x Headphone-out
Viewing Angle 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB 87% / 84% / 105% (CIE1976 Standard)
Surface Treatment Anti-glare
Display Colors 10 bits (8 bits + FRC)
Frameless Design Yes
Power Type External Adaptor 12V 2.5A
Power Input 100~240V, 50/60Hz
Adjustment (Tilt) -5°~20°
Kensington Lock Yes
VESA Mounting 100 x 100 mm
Dimension with Stand (W x D x H) 537.44 x 220.01 x 396.55 mm
Dimension without Stand (W x D x H) 537.44 x 86.07 x 319.74 mm
Weight (NW / GW) 2.9 kg / 4.6 kg
Carton Dimension (W X D X H) 600 x 142 x 396 mm
Accessories 1x HDMI Cable (2.0), 1x Power Cord (C13), 1x Quick Guide
Note HDMI: 1920 x 1080 (Up to 180Hz)
DisplayPort: 1920 x 1080 (Up to 180Hz)
Support: HDMITM CEC; Non Support: KVM, PIP/PBP
